Unilab BREEZE

Online CMV Selection Software

Online selection and quotation software for manufacturers of Controlled Mechanical Ventilation (CMV) systems.

Unilab BREEZE is the innovative online software by Unilab designed for manufacturers of Controlled Mechanical Ventilation (CMV) systems. BREEZE enables end-to-end quotation of Controlled Mechanical Ventilation systems, offering the possibility for your loyal customers and designers to use the platform.

How to Select a CMV System with BREEZE?

Step 1: Upload the Floor Plan

The first step is uploading the layout. BREEZE allows you to set the scale and upload multiple floors of a building. You can add multiple rooms, define them as supply or return air rooms, and adjust their area and height. Based on the room volume and recirculation ratio, the software calculates the required airflow (or it can be entered manually by the user).

BREEZE supports DWG, PDFs, JPEGs and PNG files.

Guided Process

The software features an intuitive guided process that helps you:

Set the scale
Modify rooms
Place the selected CMV model
Position the supply and return air vents
Add ductwork
Calculate and print the results

Customization for Ease of Use

As a customizable solution, BREEZE can be further simplified to make it even easier for your sales technicians and beginner users to operate!

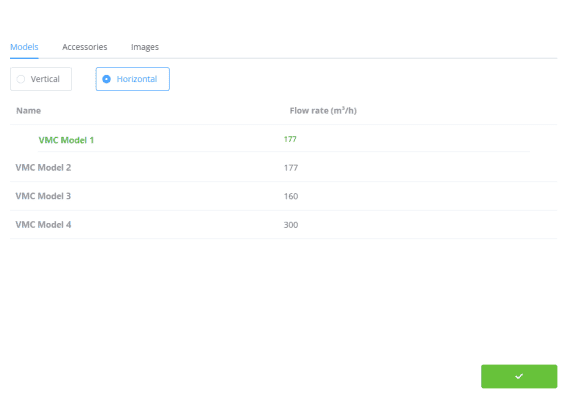

Select the CMV Model

Once the floor plan is uploaded and the rooms are configured, you can select the appropriate Controlled Mechanical Ventilation (CMV) model. The selection is based on the required airflow and/or its price. You can also add optional accessories and include the chosen model directly in the floor plan layout.

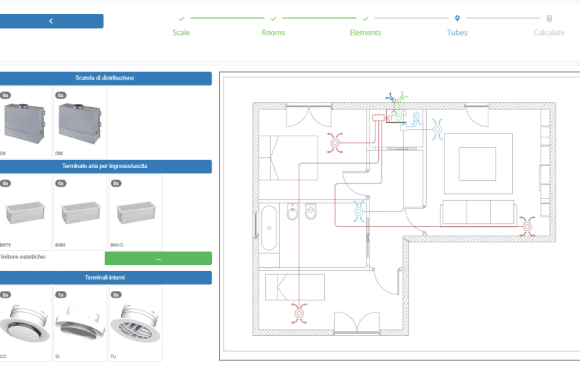

Add Distribution Boxes, Internal and External Vents, Grilles, and Connect Everything with Ductwork

After selecting the CMV model, place all internal and external distribution boxes, vents, and grilles (with options to choose their aesthetic finish) on the floor plan. Then connect them to the unit using ductwork.

BREEZE calculates both the cost and the total length of the ductwork based on its placement in the floor plan. The software leverages established equations to calculate duct pressure losses, considering the internal diameter and length. It also accounts for the shape factor, enabling calculations for non-circular ducts (e.g., square-shaped). Additionally, it computes pressure losses for grilles and other resistive elements in the system.

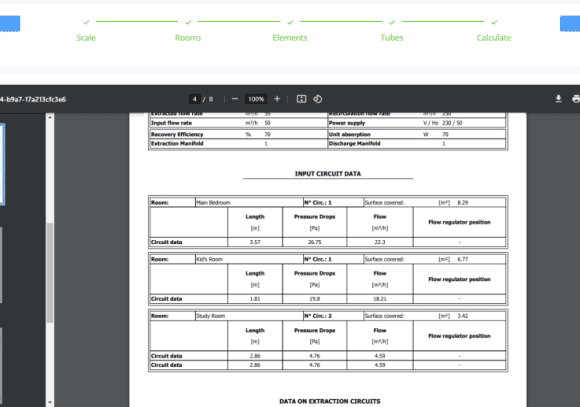

Calculate & Print

Once all components are connected, click on “Calculate” to assess the system’s efficiency. You can then generate and print a detailed report that includes the parts list along with their respective prices.

ERP Integration (Optional)

On request, the software can be integrated with your ERP system for seamless management and data synchronization.

Archive Management

BREEZE also provides backend access for:

Adding new units and associating them with components, grilles, ducts, and accessories.
Inputting fan curves and flow regulator curves.
Editing software translations.

This ensures full control over the database and the ability to customize and expand functionalities as needed.

A Fully Customizable Tool

Since the selection software represents your company’s product range, it must align seamlessly with it. Adapting the software to meet the specific needs of your sales network is crucial for its effectiveness.

BREEZE can be significantly tailored to enhance its commercial utility, integrating all your accessories and unit images, following a three-phase approach:

Needs Analysis
Understand the client’s requirements in detail.
Definition and Issuance of Customized Specifications
Start from Unilab’s standard specifications, customize them, and validate the changes with the client.
Software Development
Implement the solution based on the approved specifications.

Save Time for Your Technical Office

Allow your designers or sales team to create projects themselves. With BREEZE, sales representatives can design projects and generate gross unit quotes, drastically reducing the workload for your technical office and saving significant time.

Simple and Easy to Use

Responsive Interface
The online tool’s user interface is fully responsive, automatically adapting to the device it is viewed on.
No Installation Required
There’s no need for setup or installation. Access is immediate, requiring only a browser, username, password, and an internet connection. Updates are hassle-free—once the server is updated, all users instantly have access to the latest version.
Portability
BREEZE works on any device with a browser, making it independent of operating system requirements. It functions seamlessly on PCs, Macs, and more.
Effortless License Management
No license codes or serial numbers are required. Access is as simple as logging in with a username and password.
