Select SHELL & TUBE heat exchangers easily.

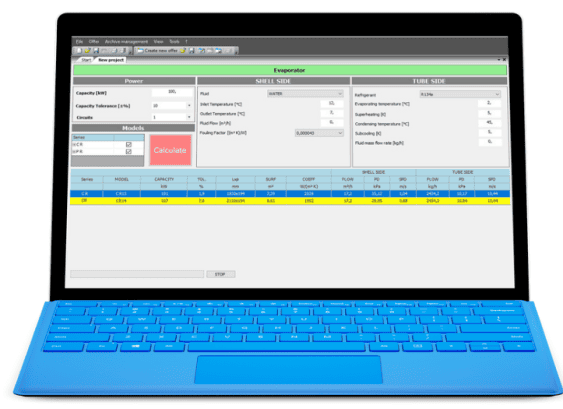

SHELL SELECT simplifies the commercial selection process, making it an essential tool for businesses looking to streamline their Shell & Tube heat exchanger selection. This module is designed for ease of use, helping users quickly identify the most suitable heat exchangers from a commercial standpoint, factoring in cost and performance criteria to ensure optimal decision-making. The SELECT module can be developed as an Offline or Online module!

From the UniSuite SHELL calculation engine, Unilab can develop a SELECTION SOFTWARE, working Offline (Desktop) or on the WEB, allowing your agents or distributors to select between your range of products. Since the selection software represents the company’s product range, it must be realized coherently with it: the adherence of the selection software to the needs of the sales network is in fact essential. SHELL can be developed as a standard SELECTION module, which allows to select the exchanger and produce a technical report including a drawing and the price of the exchanger. Commercial license bundles are available for agents and distributors. The standard SELECTION form allows slight customizations: logo, address.

TAILOR-MADE SELECTION MODULE: If the selection process, in addition to being a mere product choice, should be presented as a formal document that the company decides to produce in family line with the rest of the company documents, or with specific data that the sales network or customers like, or with different levels of detail, the creation of the SELECTION module in this case no longer passes through the standard quote, but through 3 steps:

  • Analysis of customer needs
  • Definition and issue of custom specifications and validation by the Customer.
  • Execution of software according to customized specifications.

Cascade: Evaporating & Condensing in the same hx

Our advanced shell software now empowers engineers to design, rate, and select cascade evaporator-condensers with precision and efficiency. Unilab has introduced the innovative Cascade Mode in our UniSuite SHELL and UniSuite PLATE & SHELL software. This feature enables a fluid to condense on one side of the heat exchanger while simultaneously evaporating on the other side. Typically, as an example, this involves ammonia evaporating and CO2 condensing within the same heat exchanger, significantly enhancing thermal efficiency and process performance. It is possible to calculate evaporation on shell side with a condensing tube side, but also condensing shell side with evaporation tube side.

06 12 2024 12 47 34
06 12 2024 12 25 34

Discover Unisuite!

Unisuite’s graphical interface has been completely revamped! Our new design is faster and more flexible , ensuring a seamless and efficient user experience.

Discover Unilab’s smart platform and unique tool the for design, selection and rating of PLATE & SHELLPHE, SHELL & TUBE, TUBE-IN-TUBE, COAXIAL HEAT EXCHANGERS.

All UniSuite software use the library REFPROP of NIST (National Institute of Standards and Technology). It comprises the he thermodynamic and thermophysical properties of more than 300 liquids & gases (which can be further extended by the user in autonomy), an extensive archive of OILS and 12 mixtures of liquids, along with the newest refrigerants. We have extended this library to include more than 200 liquid foods and beverages. Each software integrates correction factors, which lets the user to align results with the experimental data. Our calculation models are supported by almost 35 years of research & expertise. Our products can be used in the Process, Chemical, Pharmaceutical, Energy & Power Generation, Food & Beverage and automotive industries, and represent a well consolidated value for the HVAC&R industry.

200+ Liquid Foods & Beverages, and Non-newtonian fluids

Our updated UniSuite now features an extensive selection of over 200 liquid food and beverage fluids! Compatible with Tube in TubeCoaxShell and PHE software!

Senza Titolo
1713252062650

Corrugated Tubes (Geometrical Insertion)

Users can GEOMETRICALLY insert one-start CORRUGATED tubes into Shell and Tube as well as Tube in Tube applications WITHOUT ANY CORRECTIVE FACTORS.

This feature is exclusive to our software and has been the result of months of dedicated research, of which we are immensely proud.

An extensive archive of Corrugated tubes (along with the existing Low Finned tubes) is now available, with full geometrical insertion, with absolutely NO factors applied.
This feature is particularly beneficial for steam and fluid applications, enhancing precision and efficiency. As always, this enhancement is available to all Unisuite users. Join us in exploring the endless possibilities of Unisuite!

Two-phase/two-phase Vaporizer

SHELL now allows to calculate two-phase/two-phase vaporizers, where water vapour at low pressure, low temperature on one side is vaporized with water vapour at higher pressure and temperature on the other. Another case where this application is used is also water vapour on one side an methane passing from liquid to gas on the other.

Screenshot 2024 11 26 113446

Why choosing SHELL, and not other software?

  • Immediate use of fluid archive and mixtures: no need to know which calculation mode to use before calculating. Simply choose the fluid, and let Shell do the rest.
  • Fast learning curve: no need for high level training or high skills to use it. Training can be tailor made to face your case studies.
  • Reduced entry costs and annual fees. Select only the modules you need, and from the second year onward, benefit from a lower ongoing fee instead of paying the full amount annually. Cost-effective and tailored to your needs.
  • Geometrical, ONE-START CORRUGATED TUBES and LOW FINNED TUBES insertion: An archive of Low Finned and Corrugated tubes is available, and all tubes are inserted GEOMETRICALLY (this means there are no factors applied on smooth tubes to simulate them)
  • Food & Beverage and NON-NEWTONIAN FLUIDS
  • Shell allows you to select, rate or design heat exchangers in 11 different calculation types: the main 8 modes which are fluid-fluid, condensation inside tubes, condensation outside tubes, evaporating inside tubes, flooded evaporator, spray (falling film) evaporators, steam inside tubes , steam outside tubes. In addition, in the Pro version, it is possible to calculate also Cascade evaporating shell side-condensing tube side & cascade condensing shell side-evaporating tube side. It is also possible to calculate two-phase/two-phase vaporizers, where water vapour at low pressure, low temperature on one side is vaporized with vapour at higher pressure and temperature on the other.
  • Printing is simple and essential, with the most important data, without having to print multiple pages and sheets when you need one. Simple for you and your customers.
  • Take advantage of an extensive archive of OILS, and of more than 200 liquid foods and beverages, with possibility of adding new fluid and gas mixtures in the archive.
  • The calculation DLL has been updated to include the latest refrigerants in the Refprop library. Our Shell program now includes our latest calculation DLL, and new refrigerants have been added, such as R1234ze, R1234yf, R448A, R449A, R450A, R513A and many more.
  • Archive of tubes, with the possibility of inserting autonomously new tubes models.
  • Available in English, Italiano, Français, Deutsch, Español, 中⽂, Русский.
